Technical Data

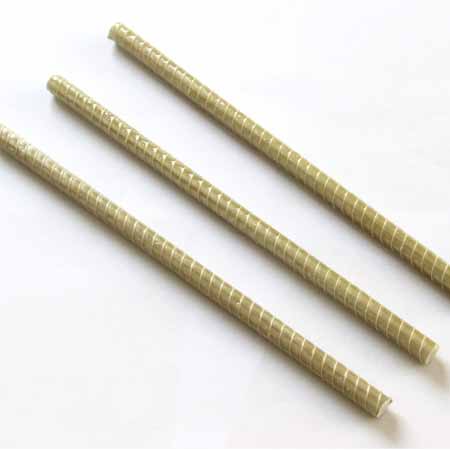

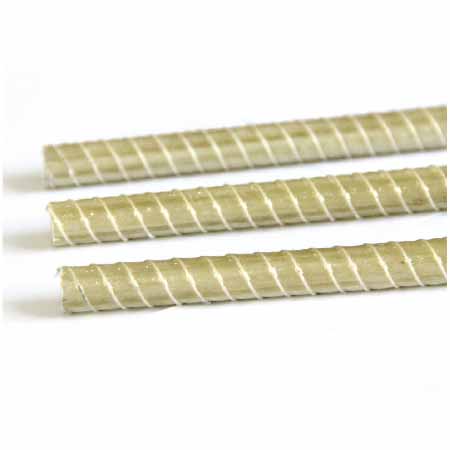

Basalt Fiberglass rebar Concrete Reinforcement, or BFRP rebar for short, is a new type of composite material that can be used to reinforce concrete structures. BFRP rebar is made of basalt fibers, which are natural volcanic rocks, and resin, which are syn
Customized service:
Diameter
Color
Length
Winding method
Surface Sandblasting
Punch hole
Basalt Fiberglass rebar Concrete Reinforcement, or BFRP rebar for short, is a new type of composite material that can be used to reinforce concrete structures. BFRP rebar is made of basalt fibers, which are natural volcanic rocks, and resin, which are synthetic polymers. BFRP rebar has many advantages over traditional steel rebar, such as:
BFRP rebar is also known as GFRP rebar (Glass Fiber Reinforced Polymer rebar), FRP rebar (Fiber Reinforced Polymer rebar), or composite rebar. BFRP rebar can be used for various types of concrete structures, such as bridges, tunnels, roads, buildings, dams, or seawalls.
The following table shows the main product parameters of BFRP rebar produced by Henan Zhongsheng Composite Materials Co.,Ltd., a leading manufacturer and supplier of composite materials in China.
| Diameter （mm） | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 34 | 36 |
| Cross section（mm2） | 28 | 50 | 73 | 103 | 134 | 180 | 248 | 278 | 355 | 478 | 590 | 671 | 740 | 867 | 977 |
| Density (g/cm3) | 2.2 | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 | 2.1 |
| Weight (g/m) | 51 | 98 | 150 | 210 | 275 | 388 | 485 | 570 | 700 | 970 | 1195 | 1350 | 1589 | 1788 | 2044 |
| Ultimate Tensile Load (KN) | 36 | 54 | 72 | 99 | 117 | 149 | 189 | 225 | 270 | 342 | 432 | 475 | 504 | 540 | 585 |
| Ultimate Tensile Strength (Mpa) | 1280 | 1080 | 980 | 870 | 764 | 752 | 744 | 716 | 695 | 675 | 702 | 637 | 626 | 595 | 585 |
| Ultimate Shear Strength (Mpa) | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 | ＞150 |
| E-modulus (GPa) | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 | ＞40 |
If you are interested in our products or have any questions, please feel free to contact us at:
We look forward to hearing from you and providing you with the best quality products and services. Thank you for choosing Basalt Fiberglass rebar Concrete Reinforcement from Henan Zhongsheng Composite Materials Co.,Ltd.
We are both manufacturer trading and company. We have our own factory and we have better service ofoverseas customers. Welcome to send your inquiry!
We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!
Our whole production lines and products have been certificated by IS09001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Basically, the payment terms areT/T,L/C at sight. Western Union, Paypal, Moneygram, Alipay Credit card are acceptableforsample order.
We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
